The complete Specac range, specified for your application
Every product below is available in India through the authorised channel — with manufacturer warranty, applications advice and import handled end-to-end. Compatible with Thermo Fisher (Nicolet), PerkinElmer, Bruker, Shimadzu, JASCO, Agilent and other major spectrometers.
ATR Accessories
Press, measure, clean, repeat. Attenuated total reflectance is the fastest route to a spectrum for most solids, pastes and liquids — no sample preparation required.

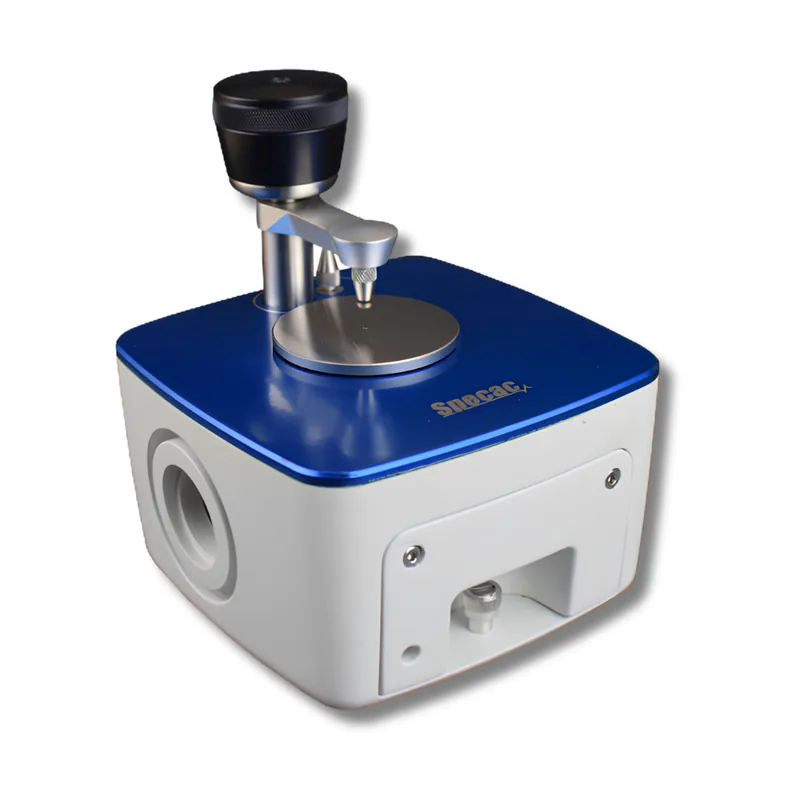

Quest ATR
All-reflective optics and durable monolithic crystals in interchangeable pucks — diamond, ZnSe (AR-coated) or germanium. Optional digital force gauge for repeatable contact.

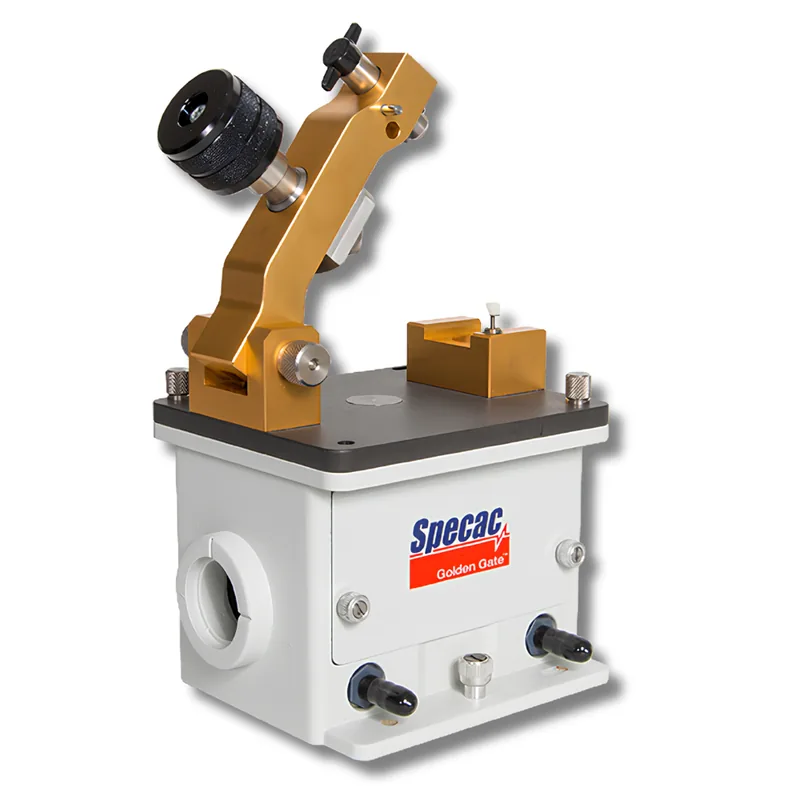

Golden Gate ATR
The industry-standard robust diamond ATR. Extensive top-plate suite for advanced sampling; conditioning from −190 °C to +300 °C with micro-liquid flow options.

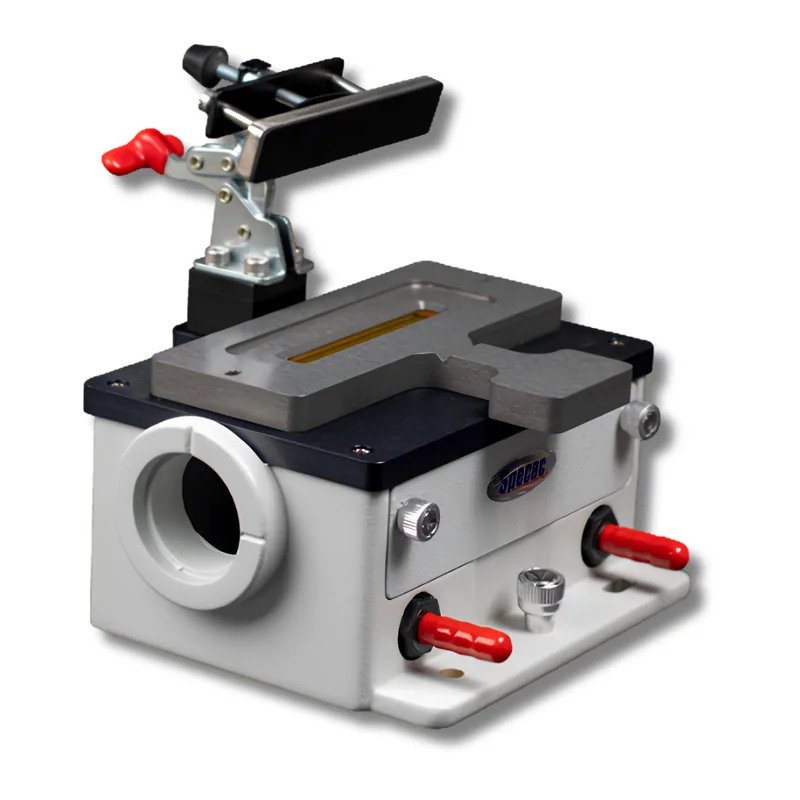

Gateway 6-Reflection HATR
Large-area crystal with six reflections for weakly absorbing liquids and coatings; heated and flow attachments available. ZnSe, Ge or Si crystals.
ConcentratIR2
Multiple-reflection micro-ATR needing only 10 µL of sample — 10 reflections on diamond, 11 on silicon. Heated flow cells available for kinetic work.
VariGATR
Variable-incidence (60–65°) grazing-angle ATR excelling at monolayers and adsorbed species on semiconductors and metal surfaces.
Arrow Silicon ATR Slides
Consumable silicon ATR slides for contamination-critical or high-throughput workflows — measure and dispose, no cleaning validation.
Hydraulic Presses & Pellet Dies
From a 2-tonne benchtop hand press to 40-tonne programmable systems — for KBr pellets in FTIR and pressed pellets for XRF, with the evacuable dies to match.

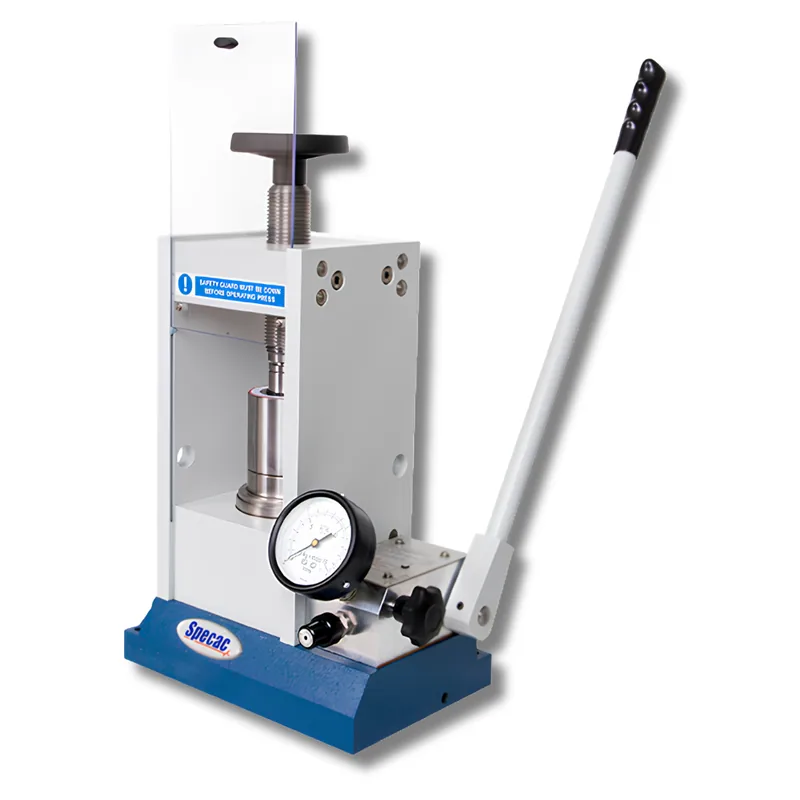

Atlas Manual Hydraulic Press 15T / 25T
The laboratory workhorse for KBr and XRF pellet pressing. A low-tonnage conversion kit extends precision work below 1 tonne.

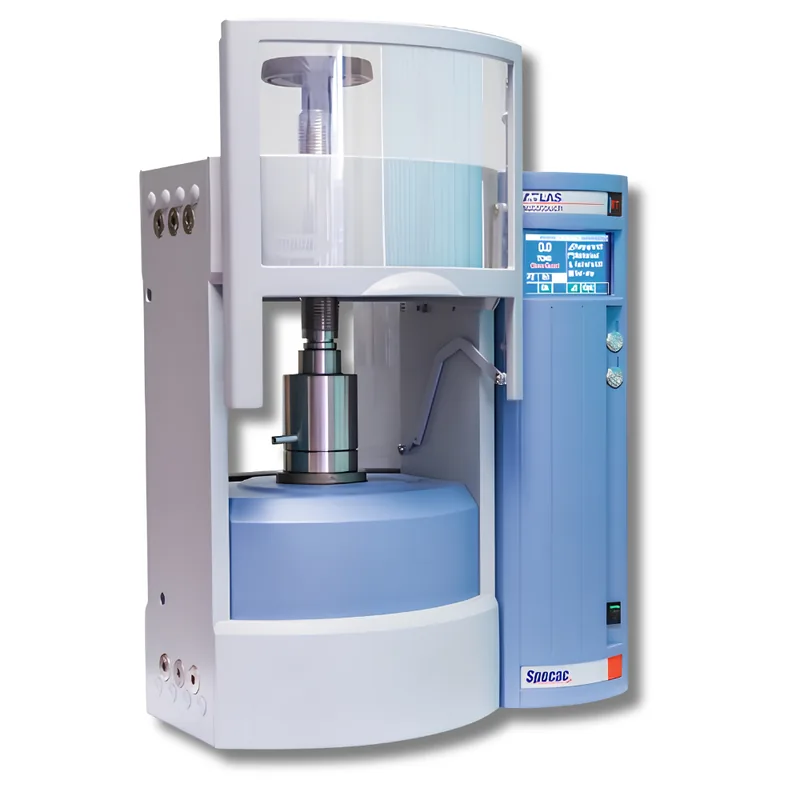

Atlas Autotouch & Power Press 8T–40T
Powered presses for precision and semi-automated sample prep; Autotouch adds a touchscreen with programmable, operator-independent methods.

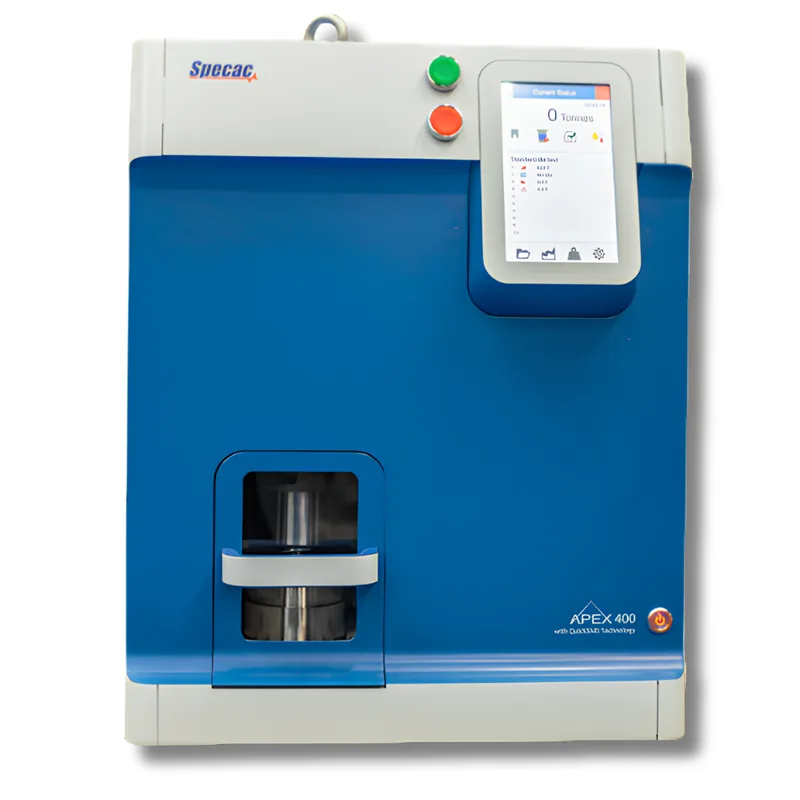

Apex 400 XRF Press
Benchtop press built for intensive industrial XRF prep — steel rings, aluminium cups or free pellets, with QuickShift rapid extraction.

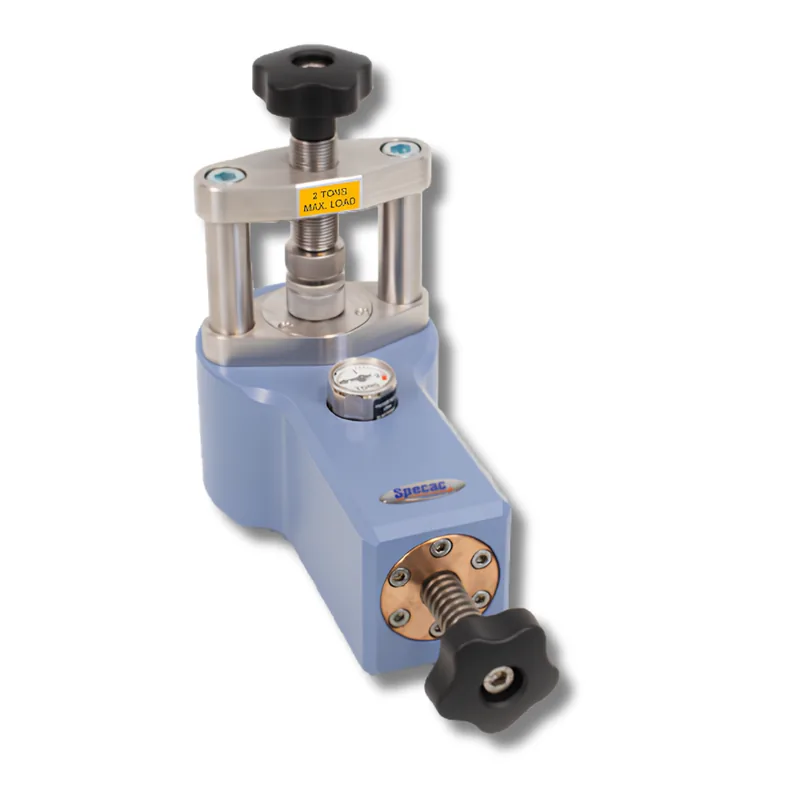

Mini-Pellet Press
A 2-tonne hand press producing 7 mm KBr pellets — under 5 kg, portable, and the standard choice for teaching laboratories.
Atlas Evacuable Pellet Dies
440C stainless-steel dies in 5, 10, 13, 20, 32 and 40 mm with vacuum ports for defect-free pellets. Tungsten-carbide pressing pellets and lightweight 3-piece options available.
Milling, Grinding & Accessories
Specamill and Specacabinet sample milling, thermostatic baths, vacuum pump systems, Specadie and pelletising aids — everything around the press.
Film Makers & Heated Platens
Quantitative polymer analysis starts with a film of known, repeatable thickness.
Atlas Heated Platens
Electrically heated 100 mm platens to 300 °C with a coolant circuit — the heart of controlled film pressing on Atlas presses.
Constant Thickness Film Maker (CTFM)
Presses 29 mm polymer films at nominal 15, 25, 50, 100, 250 or 500 µm. A high-temperature version with built-in platens reaches 400 °C.
Mini Film-Maker Kit
Heated platens integrated with the Mini-Pellet Press — 15 mm films in minutes, at the same nominal thicknesses. Specacards and magnetic holders for mounting.
Liquid Transmission Cells & Holders
Demountable, sealed, heatable and flowing — with pathlengths from 6 µm to 1 mm and windows to suit every solvent.

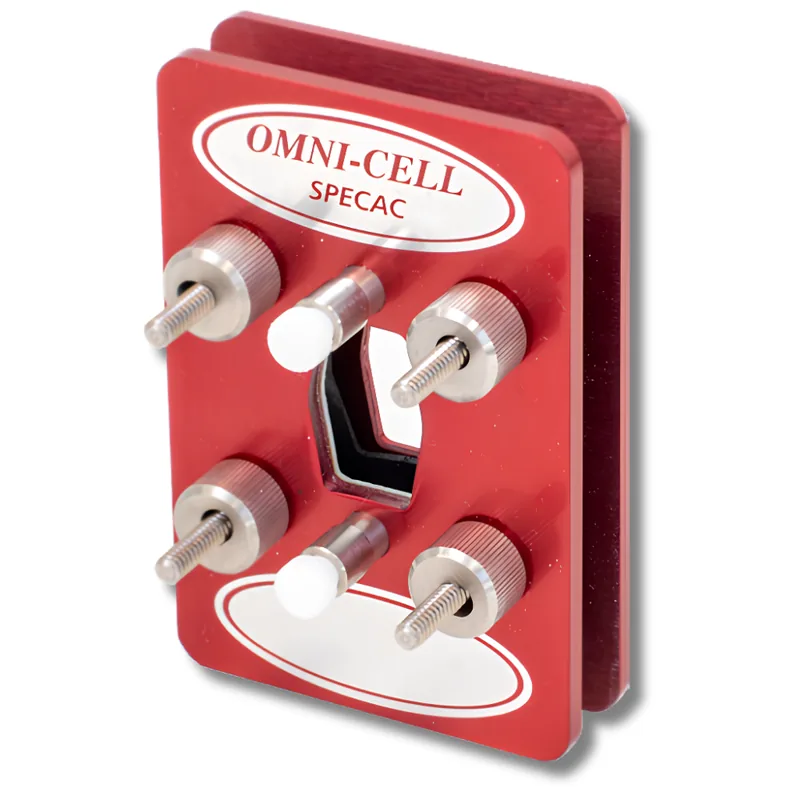

Omni-Cell System
The universal 3″×2″ liquid cell — demountable windows and spacers or pre-set sealed units. Pathlengths 0.006–1.00 mm; windows in KBr, NaCl, CaF₂, BaF₂ or ZnSe.

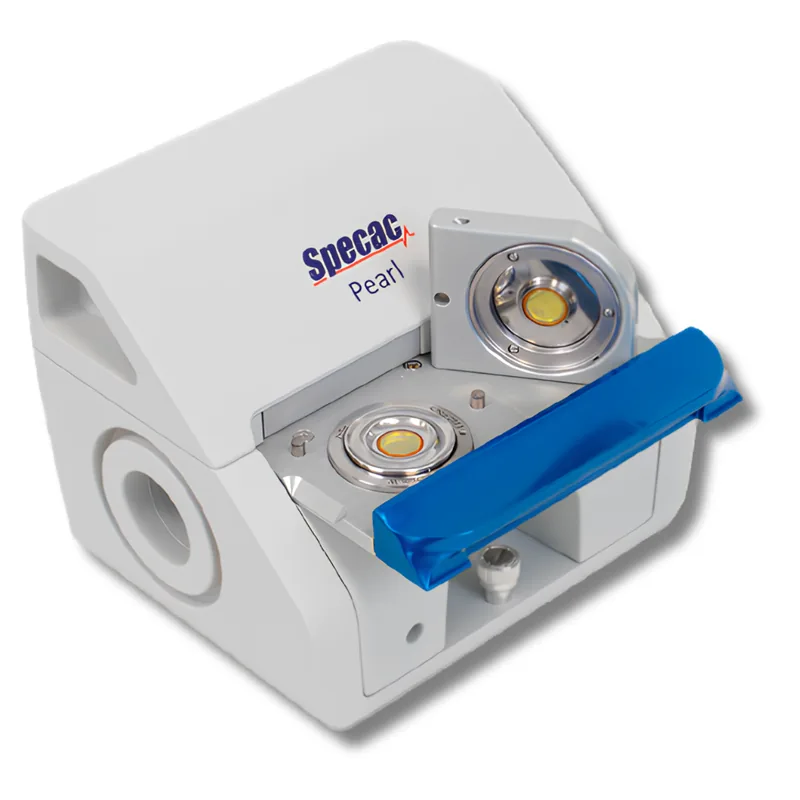

Pearl Liquid Analyser
Horizontal Oyster cell with a lift-off top window — fill, measure and clean in seconds. Built for high-throughput routine liquid analysis with fixed pathlengths.
3-Port Oil Flow Cell & Oil-in-Water Kit
Fixed 100 µm pathlength with ZnSe windows for insulating and lubricating oils to standard test norms; dedicated kit for oil-in-water monitoring.
Heatable Cells & Jackets
Water jacket to 90 °C, electric jacket to 250 °C, and the Variable Temperature cell holder spanning +250 to −190 °C with liquid-nitrogen Dewar.
High Temp / High Pressure Cell
Transmission or near-normal reflectance to 800 °C under vacuum and up to 68 bar g — for catalysis and gas–solid interaction studies. A dedicated High Temperature Cell handles solids beyond 500 °C.
Microsampling: DC-3 & Beam Condenser
DC-3 diamond compression cell with 1.8 mm apertures for particles and inclusions; 4× Microfocus Beam Condenser analyses them without an IR microscope. Micro compression cell for soft materials.
Gas Cells
Match the pathlength to the concentration: 10 cm for percent-level gases, metres of multipass for ppm work.
Storm 10 cm Gas Cells
Pyrex or stainless-steel bodied 10 cm cells with KBr, CaF₂ or ZnSe windows; heated version to 250 °C for condensables.
Cyclone Long-Path Cells
Glass-bodied multipass cells at nominal 2.5, 5 and 10 m — fixed or user-adjustable pathlengths for trace analysis.
Atmos & Tornado Long-Path Cells
Nickel-coated aluminium heatable multipass cells (2.5 / 5 / 10 m) with internal thermocouple and 200 °C heating jacket options — for low-concentration and condensable species.
Reflectance, Catalysis & Surface Analysis
Including the Harrick Scientific range — the internal-reflection pioneers since 1969, now part of Specac Ltd.

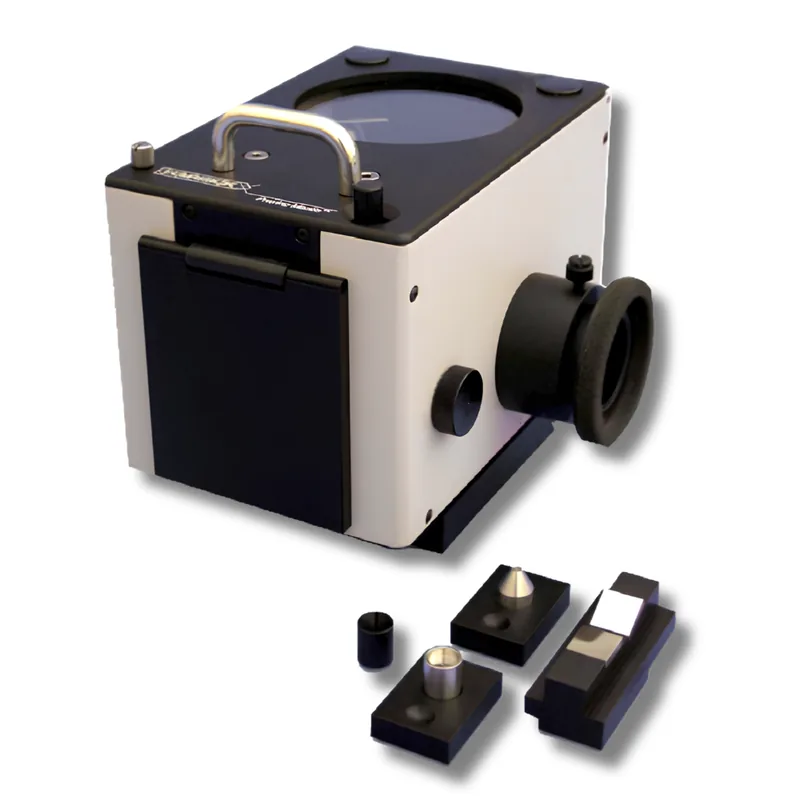

Praying Mantis
The industry-standard diffuse reflectance accessory for powders and heterogeneous catalysis, with off-axis ellipsoids that minimise specular contribution. Reaction chambers from −150 °C to 600 °C (vacuum) and a Raman version to 910 °C.
Seagull & Variable-Angle Accessories
5–85° variable-angle reflectance for powders, coatings and curved solids, with optional ATR hemispheres; matching variable-angle transmission accessory for thick samples.
Refractor2 & RefractorReactor
Compact 75° grazing-angle accessory with internal Si polariser for thin films on metals; the Reactor version adds temperature (to 500 °C) and pressure control for surface reactions.
The Selector & Minidiff Plus
Routine diffuse-reflectance accessories for powder identification, with an environmental chamber option for controlled-atmosphere studies.
Specular Reflectance & Monolayer/Grazing
Fixed and variable-angle specular reflectance for films on metallic substrates, coatings, contaminants and film-thickness measurement.
Process Flow Cells
Spyder and Vortex liquid flow cells and the Typhoon gas/vapour cell — fibre-coupled NIR interfaces for pilot plants and continuous processes, with custom pathlengths and materials.
Infrared Polarisers
Wire-Grid Polarisers
Linear polarising filters for mid-IR and far-IR/THz — holographic wire grids across standard, high-extinction and image-quality grades.
Free-Standing IR/THz Polarisers
Arrays of parallel 5 or 10 µm tungsten wires at 12.5 or 25 µm spacing — for demanding far-IR and opto-physics applications.
Rotatable Polariser Mounts
3″×2″ slide-mounted manual rotators with 1° graduations for precise polarisation-angle control.
FT-IR Starter Kits
Curated packs — Basic, Analyst, Research and Advanced — that equip a laboratory for solid, liquid and gas sampling in a single order, plus application-specific packs.
- Basic solid pack — Mini-Pellet Press (2 T, 7 mm), pestle & mortar, disc holder
- Advanced solid pack — full-size 15-tonne press with 13 mm pellet die
- Liquid pack — Omni-Cell with window and spacer selection, plus Nujol for mulls
- Gas pack — Pyrex Storm 10 cm cell with KBr windows and slide mount
- Consumables — KBr, pelletising aids, XRF cups and films, lithium borate fluxes, foils and holders
Teaching laboratory?
We map kits to Indian university practical syllabi and offer academic pricing. Visit the Sample Preparation Hub for the supporting course material — free to use in your classroom.
Custom solutions & extreme conditions
The families above are the overview — the full range runs to thousands of parts, spares, crystals, windows and configurations. And where no standard part exists, we specify one.
Thousands of parts on call
Replacement crystals, windows, spacers, seals, dies and fittings for current and legacy accessories. If you hold a part number — or just a photograph — we can identify it and quote it.
Send a part numberCustomised sampling solutions
Modified top-plates, non-standard pathlengths, adapted mounts and application-specific configurations — specified against your sample, your spectrometer and your method.
Discuss a custom requirementHigh pressure & high temperature
Sampling under conditions standard cells cannot survive — elevated-pressure and high-temperature cells and accessories for demanding process and research work.
Describe your conditions
